Service & Maintenance
Small and Utility Clamps with Full-Functions

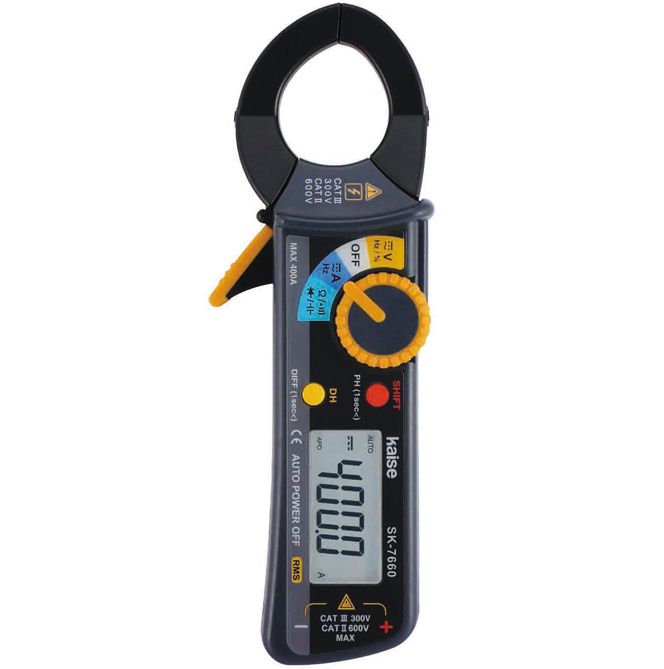

SK-7660
DESCRIPTION
Up to 400A AC/DC. Conductor dia. : 27mm max. Automatic zero adjustment in DCA range. Rubber-molded rotary switch and trigger. Test lead fixable on the side. True RMS, Peak hold function (SK-7660). MAX/MIN measurement (SK-7661)
| Sampling Rate | 3 times / sec |
| Power Supply | 1.5V R03 or AAA Batteries (x2) |
| Accessories | 100-63 Test Leads, 1015 Carrying Case, 1.5V R03 Batteries (x2), Instruction Manual |
| CE Mark | CATⅢ 300V, CATⅡ 600V and EMC |
| Dimensions | 170(H) x 58(W) x 27(D)mm |
| Display (LCD) | 4000 count LCD, Maximum reading 4050 |
